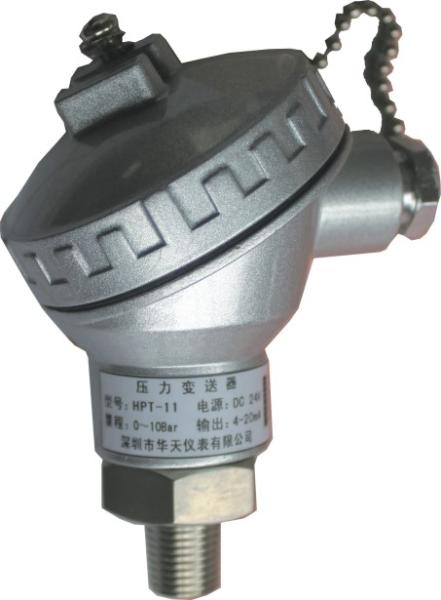

Features:
Waterproof and dustproof;
Strong applicability;
Using the high precision pressure sensor;
Optional pressure interface;
High accuracy.

Applications:

The oil industry, chemical industry,Electric power.
Hydraulic pressure system,Pneumatic system.
Energy and Water treatment system.
Automation equipment.
Industrial process control.

Performance parameters

Pressure range : -0.1~250MPa

Pressure mode : Gauge Pressure,Absolute Pressure

Output signal : 0~5V,0~10V,1~5V,4~20mA,0~20mA
Accuracy(%FS) : 0.1 0.25 0.5

Nonlinearity(%FS) : ≤0.2

Hysteresis(%FS) : ≤0.2

Repeatability(%FS): ≤0.2

Zero drift (%FS/℃): ≤0.1

Temperature drift(%FS)≤0.02

Working voltage(V) : 12~36V DC(Standard:24V)

Working temperature(℃): -20~85℃

Overload capacity(%): >200

Life span: more than 9 million times pressure cycle

Load resistance (Ω): ≤750

Response time (ms): ≤1
Measurement of medium: Mediums compatible with 316L

Diaphragm material: 316L or the ceramic diaphragm

Housing material : Cast aluminum

Pressure interface: M20*1.5,G1/2,G1/4,1/4NPT or others

Protection grade: IP65

Weight : 100g
